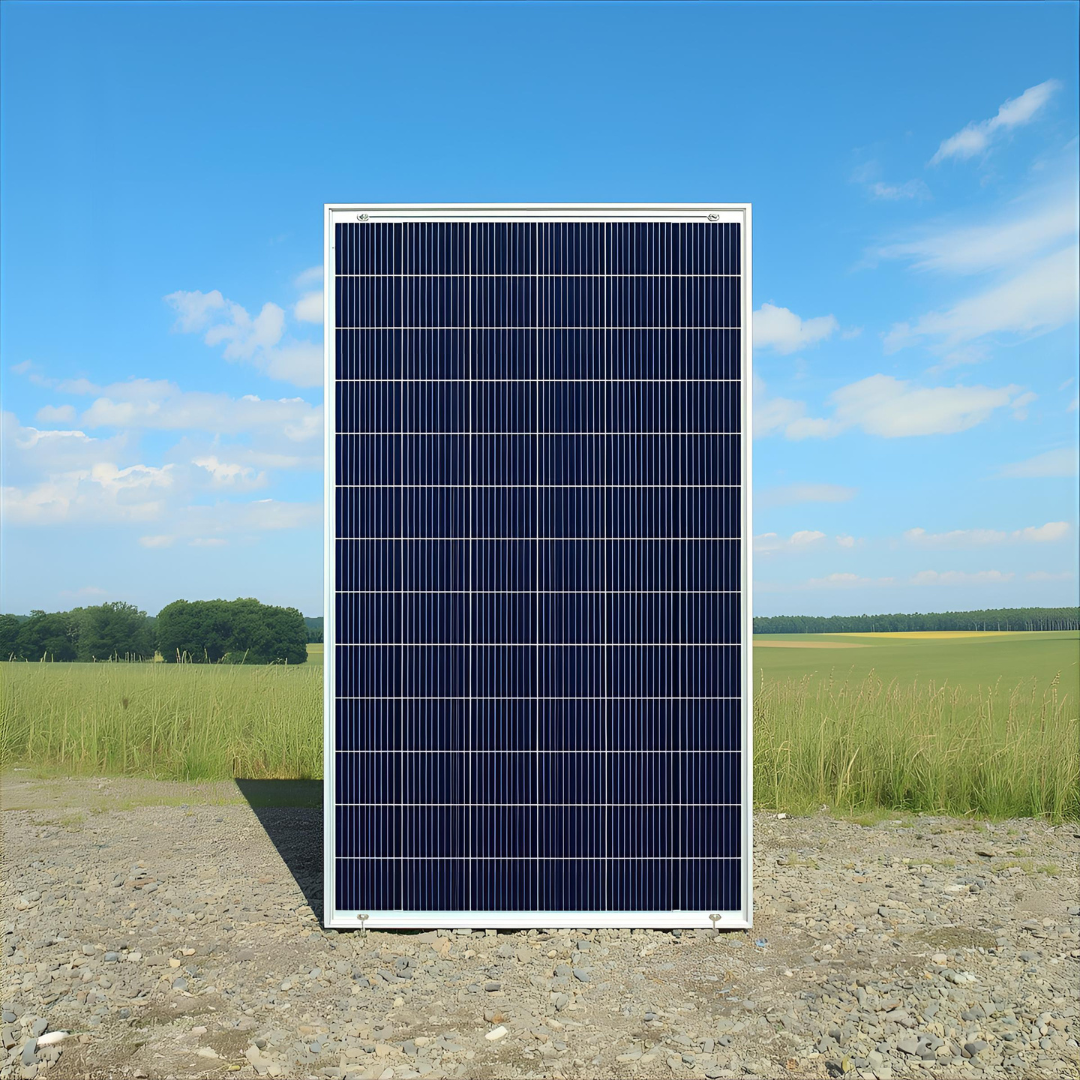

Cost-effective polycrystalline solar panels built with blue multi-crystal silicon cells. Designed for residential, commercial, and utility-scale applications, these panels offer stable performance, long service life, and compatibility with all major mounting systems. Ideal for budget-conscious solar installations.
Features and Benefits
-
Lower cost per watt compared to monocrystalline panels, ideal for large-scale or price-sensitive projects.
-
Stable performance with typical efficiency between 15%–17%, suitable for high sunlight regions.
-
Long service life with durable anodized aluminum frame and tempered glass protection.
-
Widely available wattages and sizes to suit off-grid, rooftop, and utility installations.
Available Mounting Options
-
Rooftop Mounting: Ideal for residential or commercial buildings using flush or tilt frames.
-

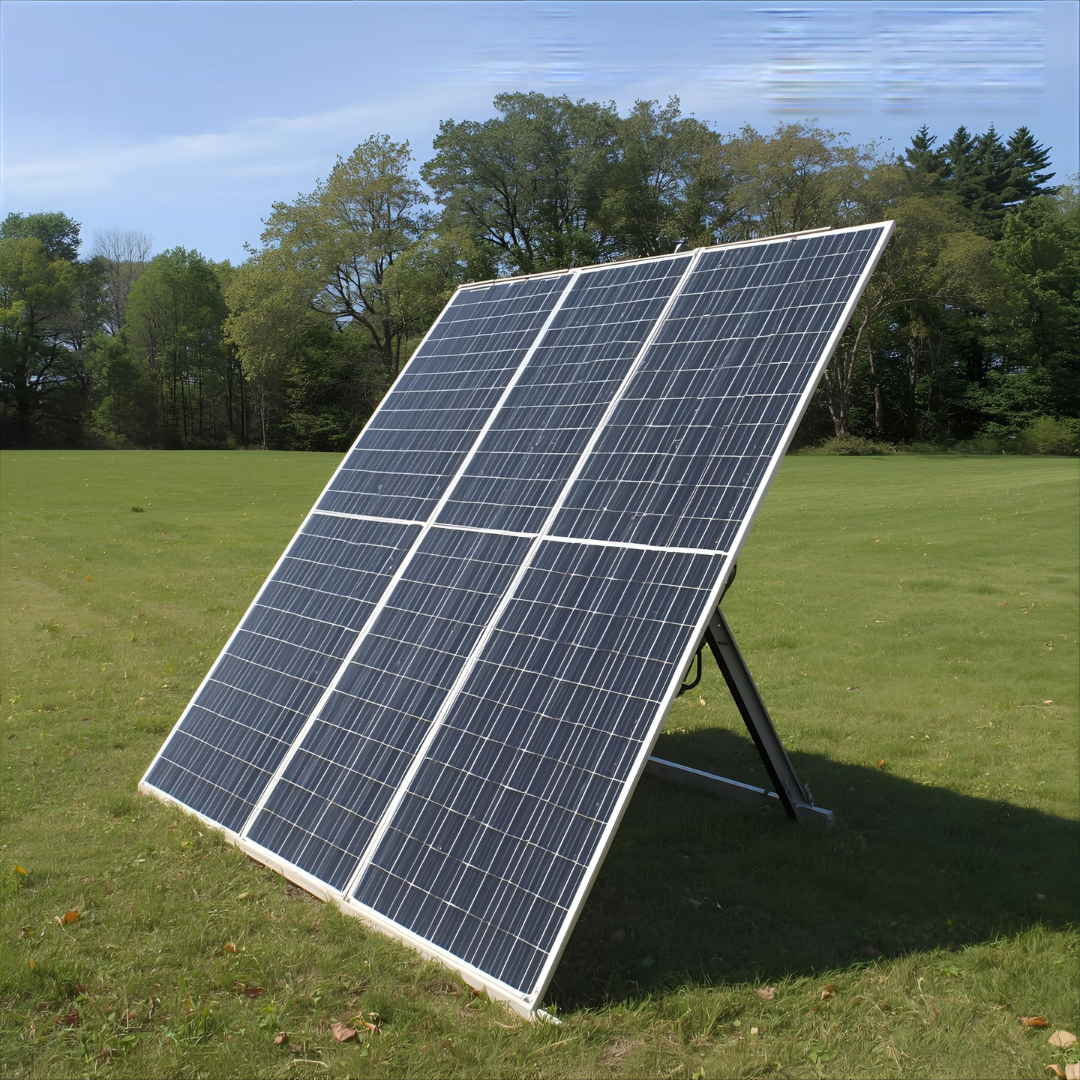

Ground Mounting: Suitable for open-land or off-grid projects using fixed or adjustable racks.
-
Pole Mounting: Common for small off-grid systems like street lights or agricultural use.
-
Portable Mounting: For small wattage panels used in RVs, cabins, or temporary systems.
✅ Technical Specifications Table
| Parameter | Specification |
|---|---|
| Cell Type | Polycrystalline silicon (multi-crystal) |
| Module Efficiency | ~15% – 17% |
| Wattage Range | 10W to 350W (varies by model) |
| Nominal Voltage | 12V / 24V / 48V (model dependent) |
| Frame | Anodized aluminum alloy |
| Front Glass | 3.2 mm low-iron tempered glass with AR coating |
| Operating Temperature | –40°C to +85°C |
| Temp. Coefficient (Pmax) | ~–0.40% to –0.47% / °C |
| Connector | MC4 compatible |
| Junction Box | IP65 / IP68 rated with 3 bypass diodes |
| Standard Dimensions | ~1640×990×35 mm (for 250–300W panels) |
| Weight | 18 – 23 kg (depends on wattage) |
| Certifications | IEC 61215, IEC 61730, IEC 61701 |
| Warranty | 10 years product / 25 years performance |
