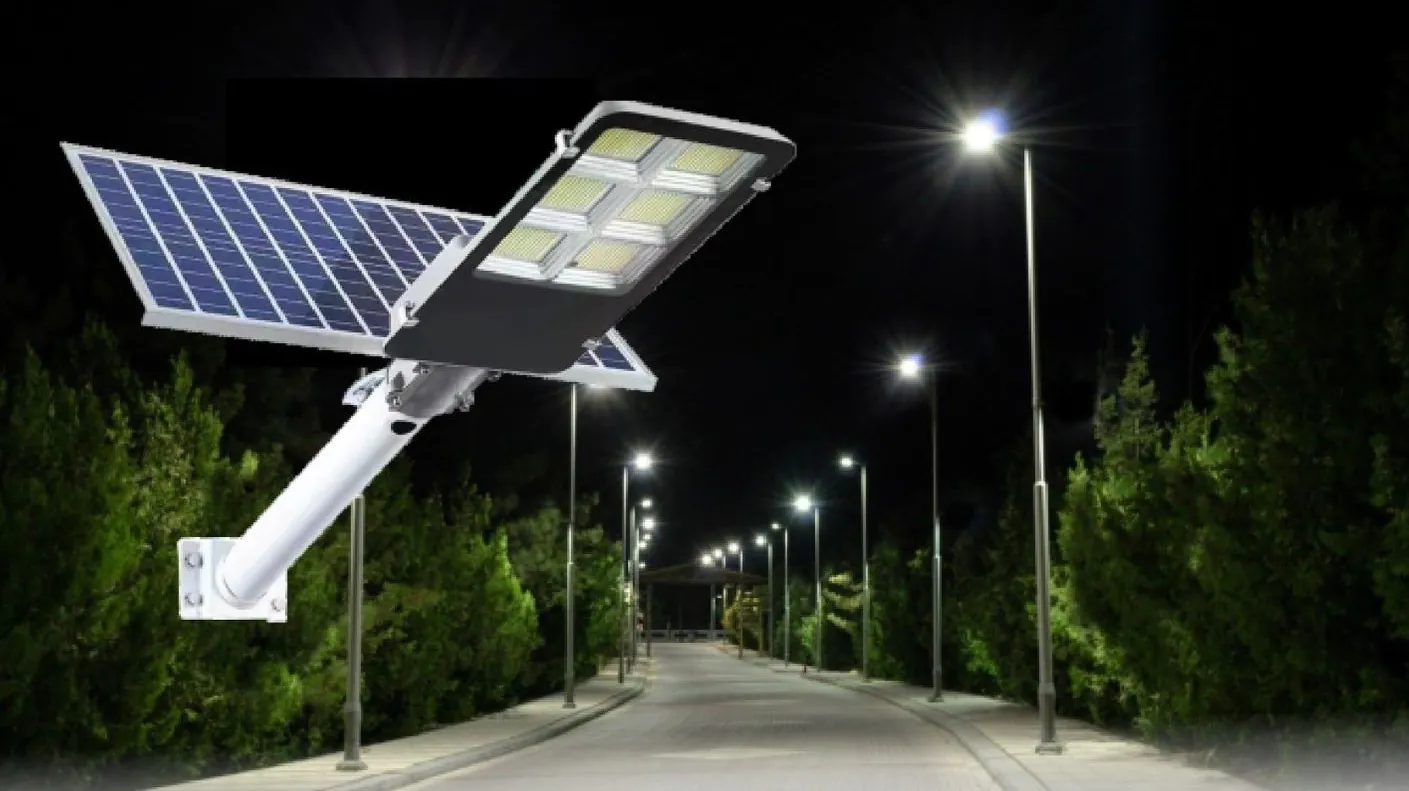

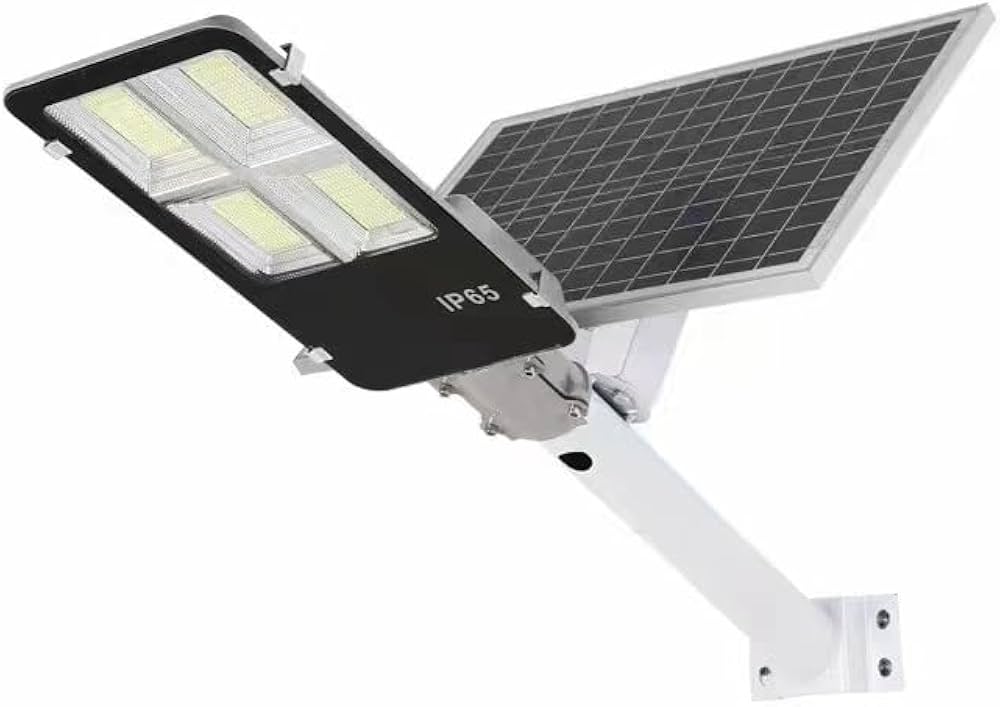

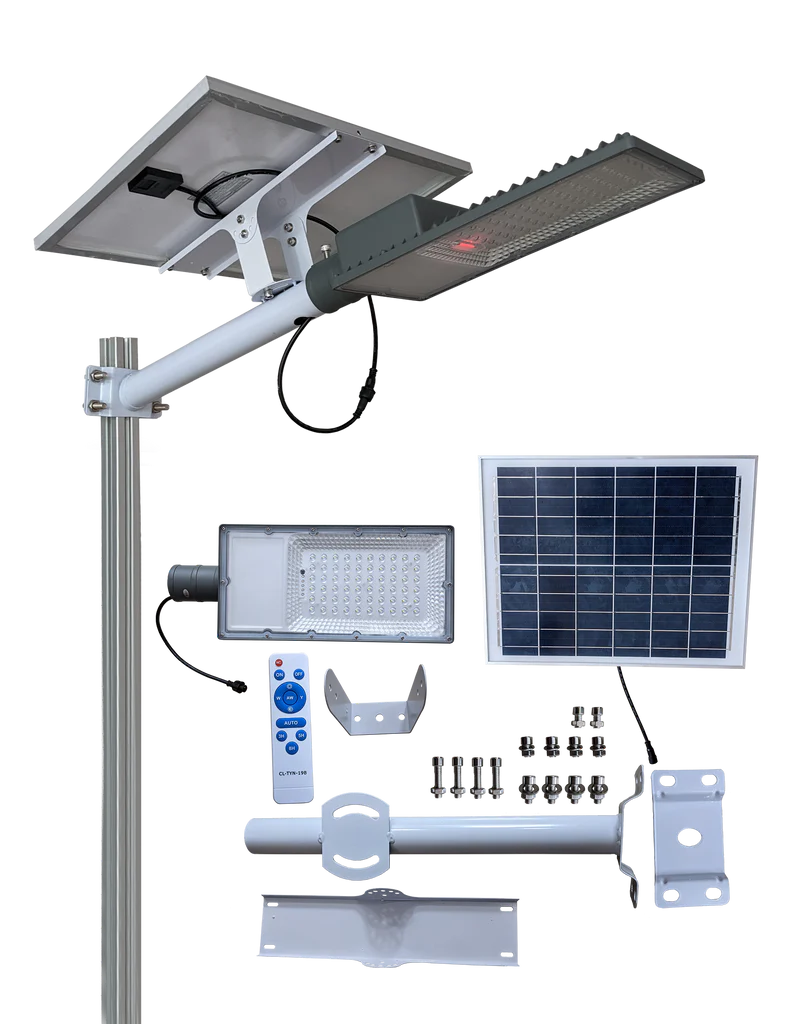

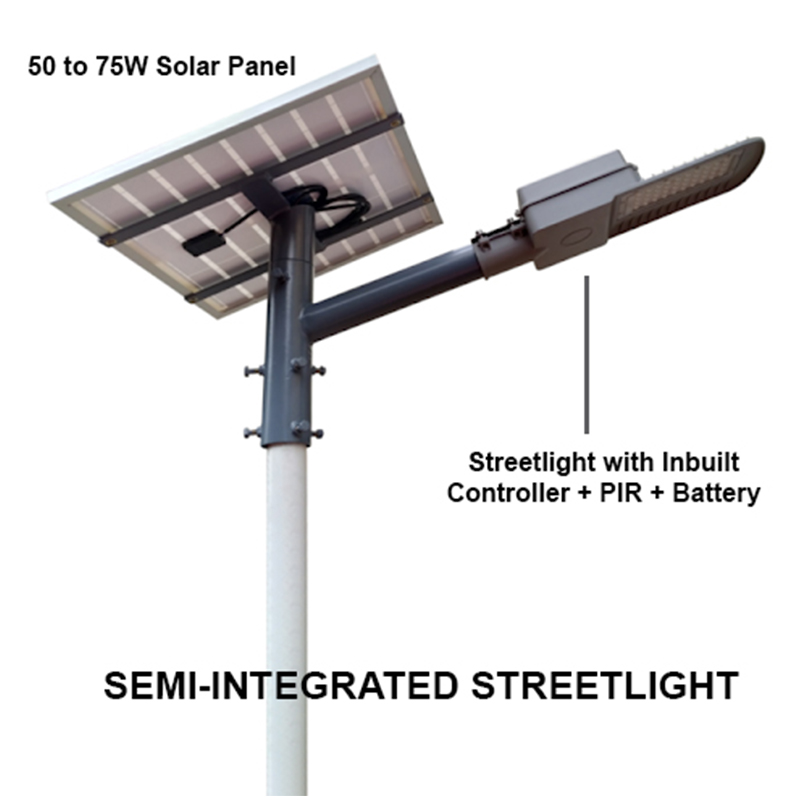

The Semi-Integrated Solar LED Street Light combines a separate high-efficiency solar panel with an integrated LED luminary housing a long-life LiFePO4 battery and smart controller.
This design provides higher solar charging efficiency, superior brightness output, and longer backup compared to standard models.
The luminary uses high-brightness Osram/Bridgelux LED chips with a 50,000-hour lifespan, ensuring excellent uniform illumination for streets, pathways, residential complexes, parking areas, and industrial campuses.
With automatic dusk-to-dawn operation and optional PIR motion dimming, this system is ideal for energy-efficient and maintenance-free outdoor lighting.
Key Features
-
LiFePO4 long-life battery
-
High-brightness Osram/Bridgelux LED chips
-
50,000 hours LED lifespan
-
Separate high-efficiency solar panel
-
Faster charging even in low sunlight
-
Intelligent dimming mode (100% → 50%)
-
Optional PIR motion sensor
-
Up to 2 days backup
-
IP65 weatherproof body
-
Aluminium alloy housing
-
Automatic dusk-to-dawn operation
-
Zero electricity cost
-
Maintenance-free system
WARRANTY
-
2 Years Manufacturer Warranty on the solar luminary unit
-
25 Years solar panel service life
-
50,000 Hours LED chip lifespan
-
Battery designed for long cycle life with reliable performance
TERMS & CONDITIONS
-
Installation:
Charges extra (as per actuals). -
Delivery Time:
Depends on order quantity. -
Transport:
Additional as per actual charges. -
Pole Not Included:
Pole & civil foundation work to be arranged separately unless specified. -
Samples:
Paid samples available on request.
TECHNICAL SPECIFICATION TABLE
| Wattage | Solar Panel | Battery | LED Lumens | LED Life | Viewing Angle | Motion Mode | Charging Time | Backup | Size (mm) | Install Height |
|---|---|---|---|---|---|---|---|---|---|---|
| 9W | 40Wp | 12.8V 6Ah | 1260 lm | 50,000 hrs | 120° | First 4 hrs 100% → 50% | 6–7 hrs | 2 days (dimming) | 645×340 | 4–5 m |
| 12W | 40Wp | 12.8V 12Ah | 1680 lm | 50,000 hrs | 120° | Same | 6–7 hrs | 2 days | 645×340 | 4–5 m |
| 15W | 50Wp | 12.8V 18Ah | 2100 lm | 50,000 hrs | 120° | Same | 6–7 hrs | 2 days | 785×340 | 4–5 m |
| 20W | 60Wp | 12.8V 18Ah | 2800 lm | 50,000 hrs | 120° | Same | 6–7 hrs | 2 days | 960×340 | 5 m |
| 25W | 80Wp | 12.8V 24Ah | 3500 lm | 50,000 hrs | 120° | Same | 6–7 hrs | 2 days | 1130×340 | 5–6 m |
| 30W | 80Wp | 12.8V 30Ah | 4200 lm | 50,000 hrs | 120° | Same | 6–7 hrs | 2 days | 1020×510 | 6–7 m |
| 40W | 100Wp | 12.8V 36Ah | 5600 lm | 50,000 hrs | 120° | Same | 6–7 hrs | 2 days | 1020×510 | 6–7 m |
| 50W | 120Wp | 12.8V 48Ah | 5200 lm | 50,000 hrs | 120° | Same | 6–7 hrs | 2 days | 1020×510 | 6–7 m |
