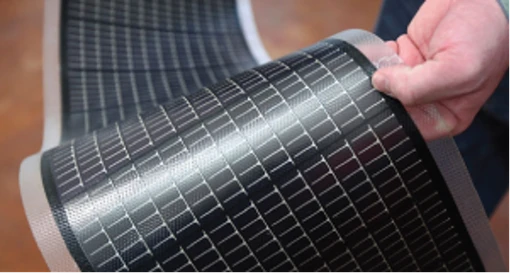

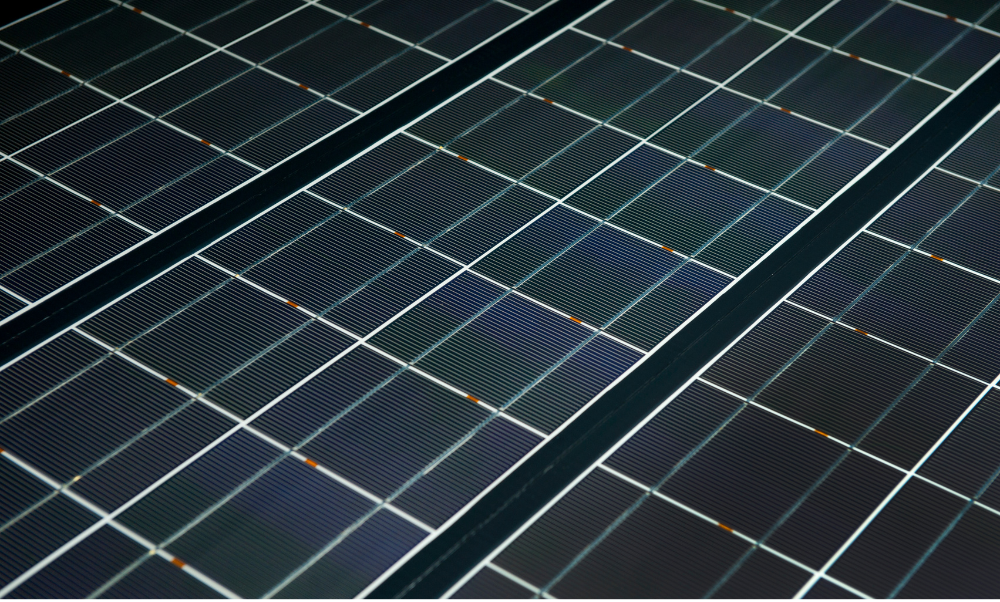

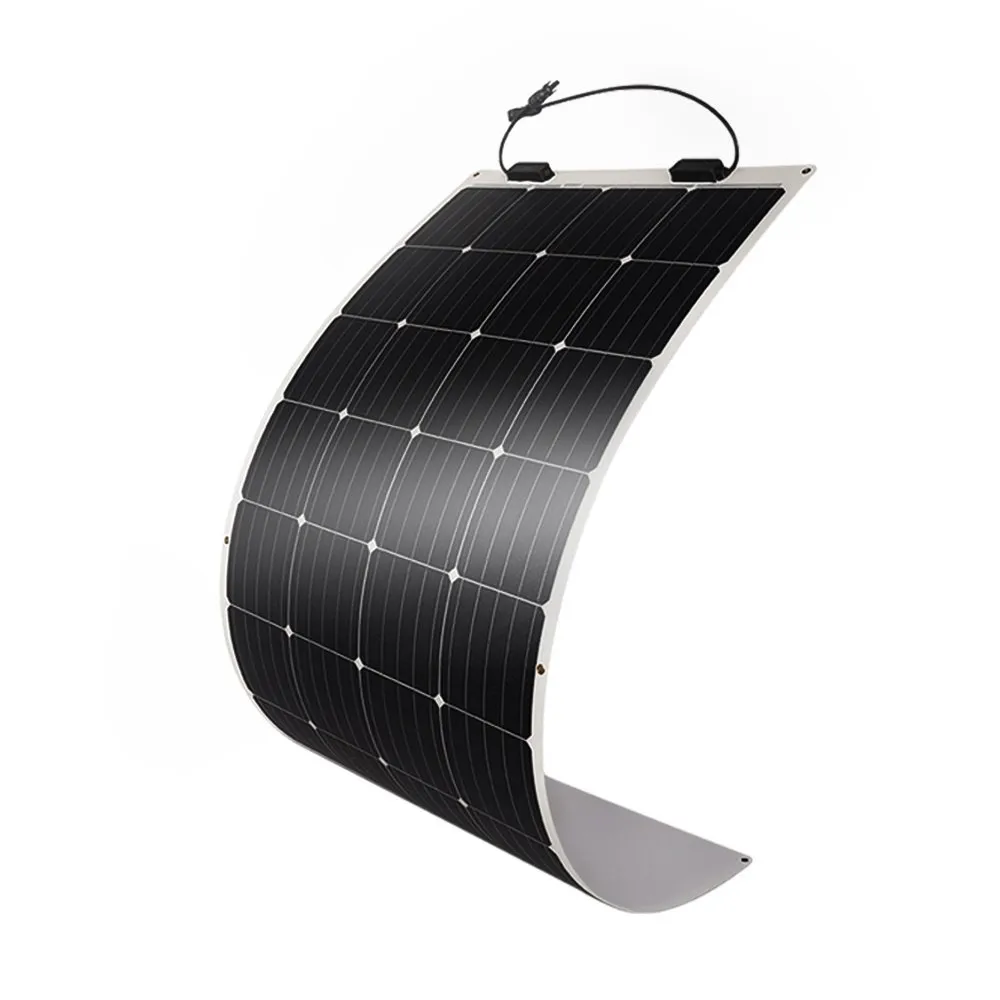

Thin-Film Solar Panels offer an ultra-light, flexible, and cost-effective alternative to traditional solar modules. Designed using advanced deposition technology, these panels perform well even in low-light and high-temperature conditions, making them ideal for large rooftops, curved surfaces, off-grid setups, and industrial projects. With easy installation and consistent energy output, Thin-Film panels provide reliable power where conventional panels may not fit or perform as efficiently.
Features & Benefits
-
Ultra-lightweight & Flexible: Easy to install on curved, uneven, or weak roof structures without heavy mounting hardware.
-
Better Low-Light & High-Temperature Performance: Generates power efficiently during cloudy weather and maintains output even in hot climates.
-
Sleek, Low-Profile Design: Blends seamlessly with building surfaces, ideal for modern architectural or BIPV applications.
-
Cost-Effective Solar Solution: Lower production cost compared to crystalline panels, making it suitable for large-scale and budget-sensitive projects.
-
Versatile Applications: Perfect for rooftops, walls, portable systems, containers, vehicles, and off-grid installations.
Available Mounting Options
-
Standard rooftop mounting (metal sheet, RCC, industrial sheds)
-
Adhesive/laminated mounting on smooth surfaces
-
Curved roof mounting (tunnels, warehouses, dome structures)
-
Wall-mounted / facade (BIPV applications)
-
Portable / foldable thin-film kits for field use
-
Off-grid system mounting (solar lamps, cabins, caravans, containers)
-
Ground-mount structures for large-area land installations
-
Rail-less mounting for lightweight rooftops
-
Vehicle top mounting (vans, trucks, caravans, RVs)
Technical Specifications
| Specification | Details |
|---|---|
| Module Type | Thin-Film (CIGS / CdTe / Amorphous Silicon) |
| Power Output Range | 50W – 300W (varies by model) |
| Module Efficiency | 10% – 18% |
| Dimensions (Approx.) | Example: 1200 × 600 mm (varies by wattage) |
| Weight | 2–4 kg (ultra-light compared to crystalline panels) |
| Operating Temperature | –20°C to +85°C |
| Temperature Coefficient (Pmax) | –0.20% to –0.30% / °C |
| Material & Substrate | Flexible polymer / stainless steel foil / glass-free options |
| Durability Rating | Weather-resistant lamination, UV protected |
| Certifications | IEC 61646, IEC 61730, CE (depending on model) |
| Warranty | 10 years product warranty, 20–25 years performance (80% output) |
